Japan MINO Screen Printing Squeegee

Genuine Import, Complete Range of Specifications, Ample Stock Available, Inquiries Welcome

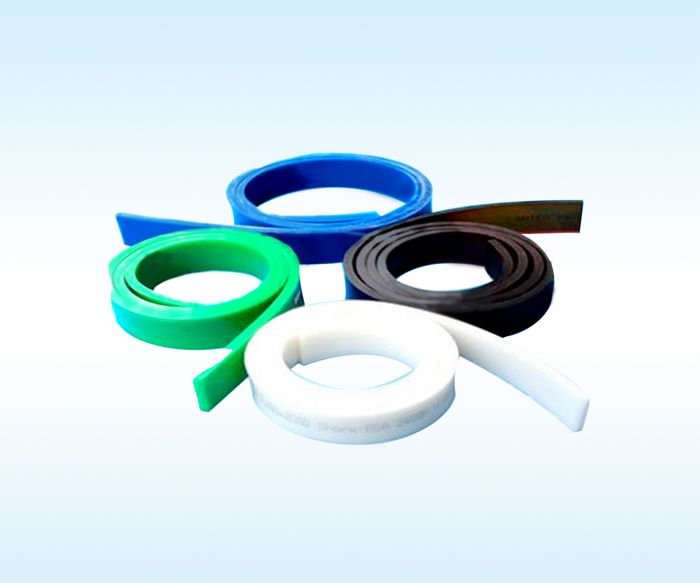

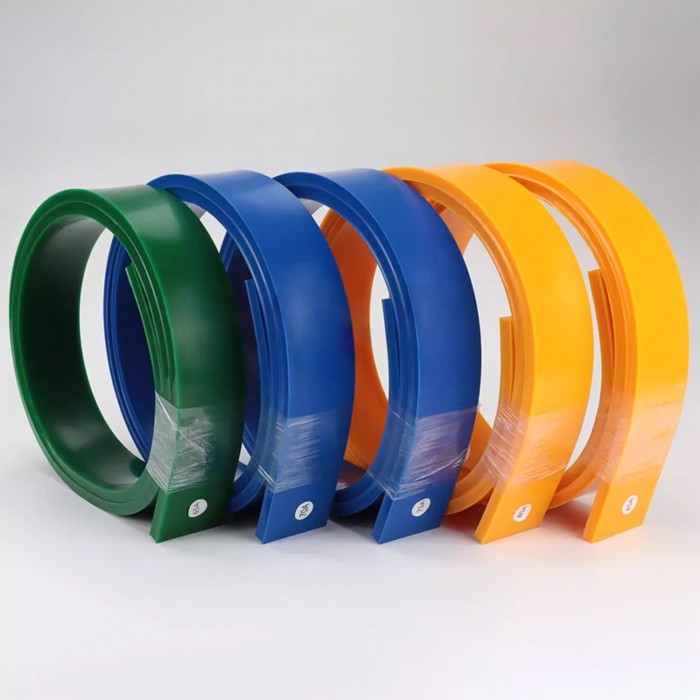

Standard Squeegee

Squeegee rubber attending to all needs for screen printing.

Rich in wear abrasion and solvent resistance.
Recognizable in type and hardness at a glance by color
Abundant in type and specification.
Enable to print clearly with sharp squeegee edge finishing.
Sufficient consideration on preventing meander.
Enable to same printing quality on front/back of blade side with MINO original squeegee rubber manufacture method.

Product Features

Excellent abrasion resistance, and extensive in shape and specifications.

Excellent solvent resistance, smooth edge.

Hardness

Red （55～60°）

Green （62～68°）

Blue （70～75°）

Yellow （80～85°）

Shapes

Flat type（Thickness 6，9mm;　Height 30，42，50mm）

Square type（9.6×9.6mm　10×10mm）

Sword type（four types）

Flat type special squeegee for PCB hole filling （Thickness 20mm）

ME Squeegee

ME squeegee blade with strong solvent resistant

This squeegee rubber is excellent solvent resistance against ink or paste which uses pyrrolidone or DMF as solvent. Hardness 60-70-80°are available.

Product Features

Solvent resistance test

Percentage change under continues soaking： weight increase by swollen in percentage (％)／Hardness decrease by swollen in percentage (％)

Solvent	Squeegee	Immersion Time (Hours)
Solvent	Squeegee	8	24	48
N-methyl-2-pyrrolidone	ME	0.0/-1.0	0.8/-2.5	1.2/-2.6
N-methyl-2-pyrrolidone	Normal urethane	34.5/-39.3	41.8/-46.7	62.1/-58.6
N,N-dimethylformamide	ME	0.6/-1.3	1.0/-2.6	1.2/-2.6
N,N-dimethylformamide	Normal urethane	40.7/-37.3	46.5/-41.3	49.4/-46.7
Triethylene Glycol Dimethyl Ether	ME	0.6/-1.3	0.8/-2.6	1.8/-2.6
Triethylene Glycol Dimethyl Ether	Normal urethane	8.0/-16.0	15.3/-24.0	22.1/-26.7

Product Specifications

Hardness: Shore A 60° 70° 80°

Shape: Flat type 9×45×500 (mm)

Color: Gray

Cautions

ME squeegee rubber has comparatively weak in swollen under aromatic solvents such as Toluene and Xylene.
The above result based on factory test, any change on condition and material may lead to different result. Test before use is recommendable.

Due to improvement of product, the above information may be change without notice. Thank you for your understanding.

WS cut・squeegee

Squeegee cut to best shape for silver paste coating.

In order to get the best printing result, other than base ink and stencil, squeegee condition is very important.

「WS cut」 with grinding finishing is the ideal shape for squeegee.

About shape

During high resolution printing with high viscoelasticity printing paste or ink, or high-definition circuit printing which needs uniform coating, squeegee needs enough force at the same time quick shearing force in order to do uniform printing.

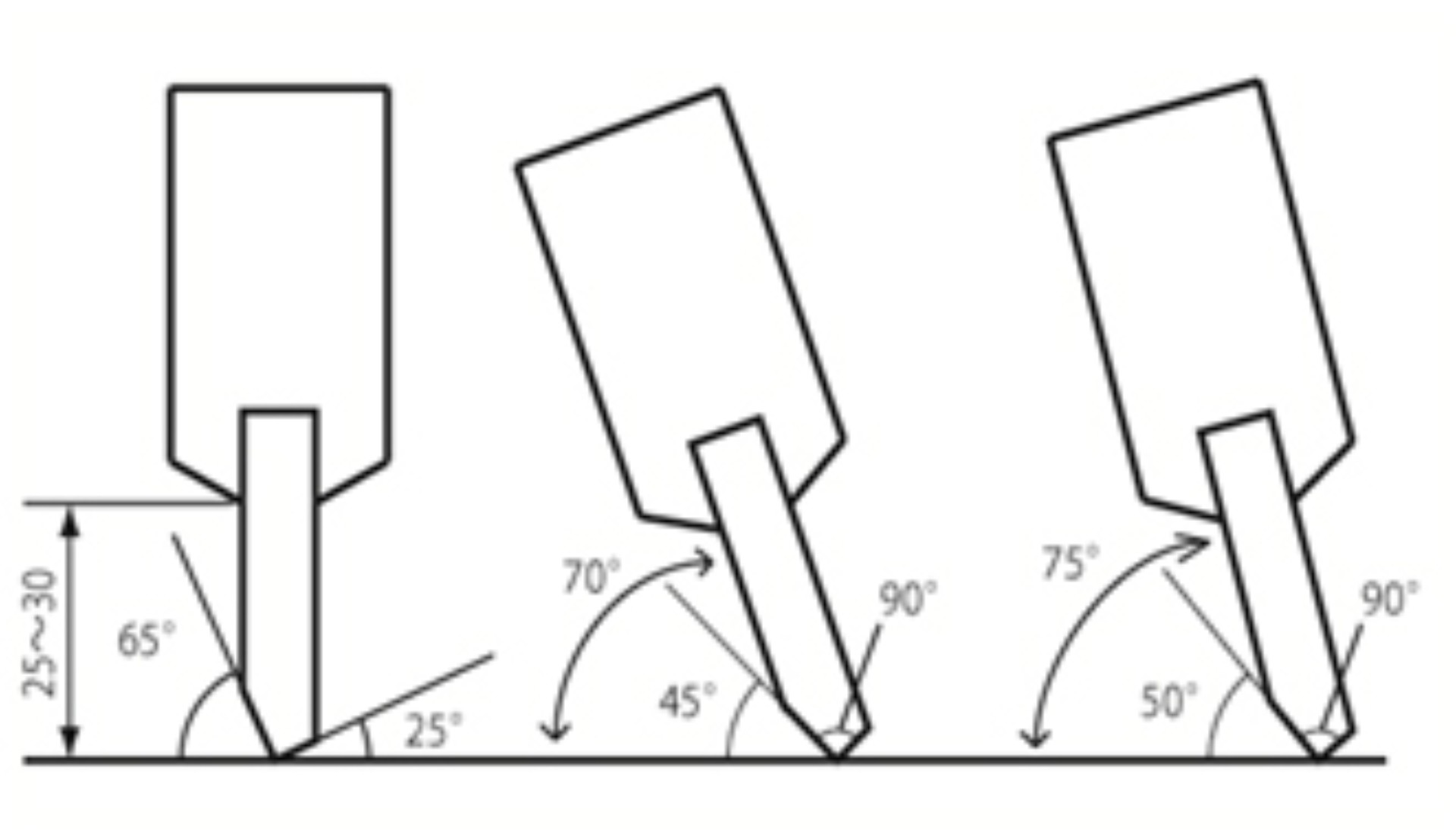

※Remain attachment angle as 70°, reduce angle of attack.

About squeegee

Reduce actual angle of attack and increase 「filling force」(about45～50°)
To maintain uniformity, keep rubber leg long in order to keep 「Elasticity」.
Right angle grinding of squeegee tip has advantage on smooth scratching of ink paste on plate.

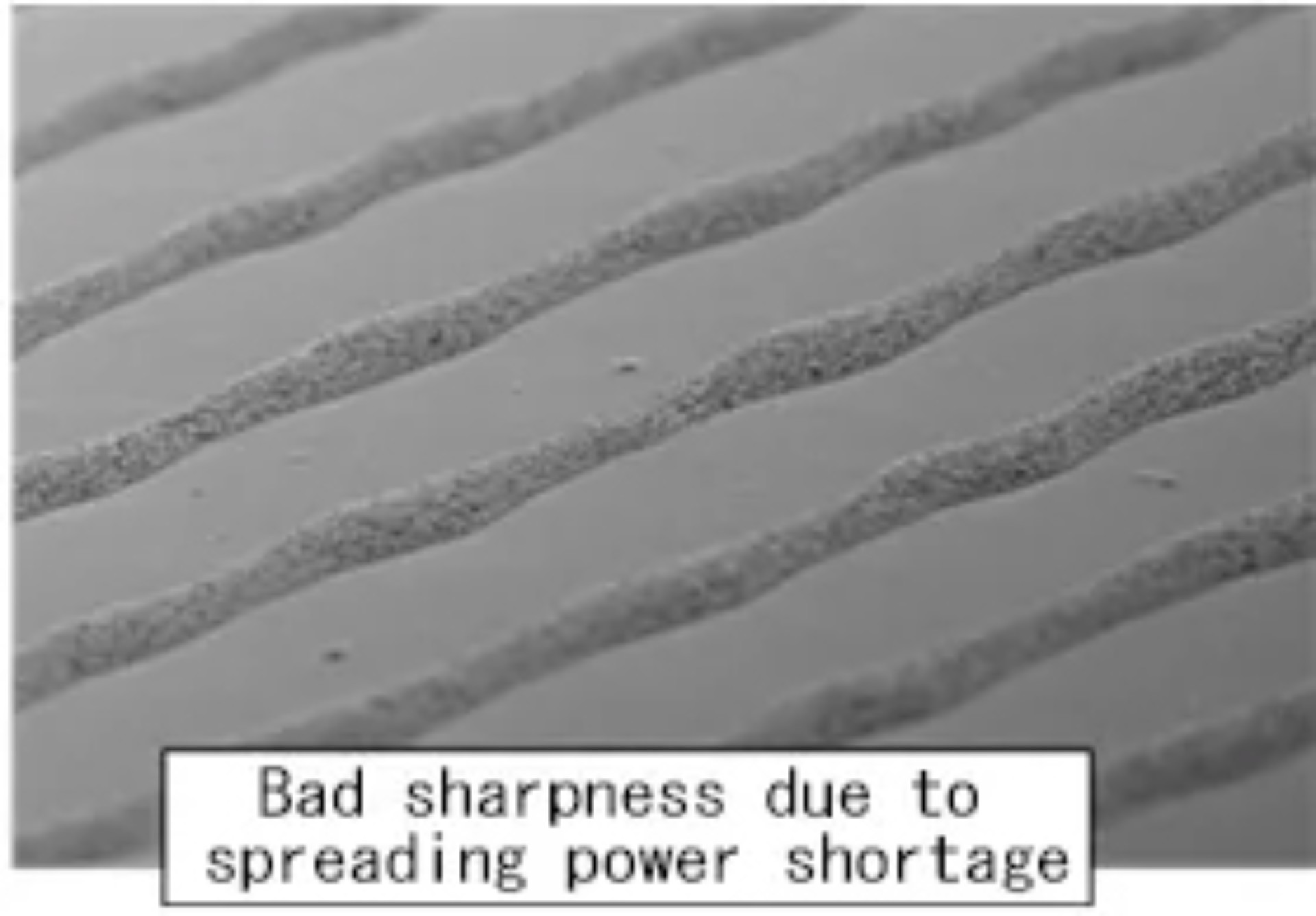

Observation of result using high viscoelasticity silver paste for SUS500 50μｍ line printing


Normal flat type attack angle set as 70°	WS cut・squeegee actual attack angle set as 50°

About product

Squeegee type

MP(Good printability and solvent-resistance),

ME(for strong solvent-resistance use),

MU(Good abrasion resistance and anti-elasticity), etc.

Support MINO original product, flat squeegee with high hardness.

Modified length

Order cutting for 500mm and 750mm.

Item is modified for MINO orginal holder clamp product use .

for use of other holder, please process adjustment (finishing grinding) if needed.

※Other shape and angle can also be modify, please contact us for further detail.
