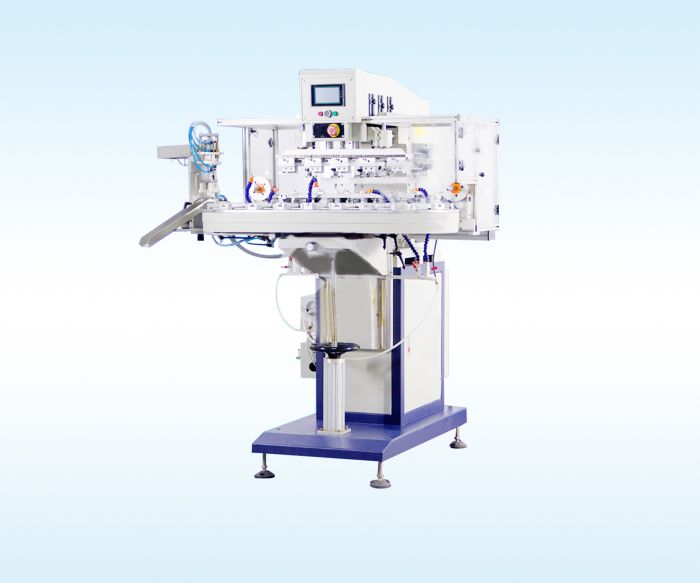

SPCC-856D Five-color Turntable Oil Cup Machine (with Cleaning Device)

technical parameter

Steel plate size: 100x250mm

Oil cup size: 90 mm diameter

Position spacing: 114.3mm

Printing speed: 900-1100

Printing Pressure: 1800N

Power supply: 220V 50/60Hz 200W

Shape size: 1050x1250x1550mm (horizontal x, vertical x high)

Weight: 280Kg

Characteristic:

Automatic cutting;

Equipped with automatic cleaning rubber head device, hot air drying device

Oil cup system, environmental protection and cleanliness, reduce ink volatilization

The rubber head is guided by four guide axes to ensure printing speed.

PLC control system, man-machine interface, simple operation, diverse procedures

There are two automatic blanking schemes, all of which adopt pneumatic system. The schematic is as follows:

Vacuum sucker is used for multiple printing, which directly absorbs the finished workpiece. It is easy to install and not easy to damage the workpiece surface.
