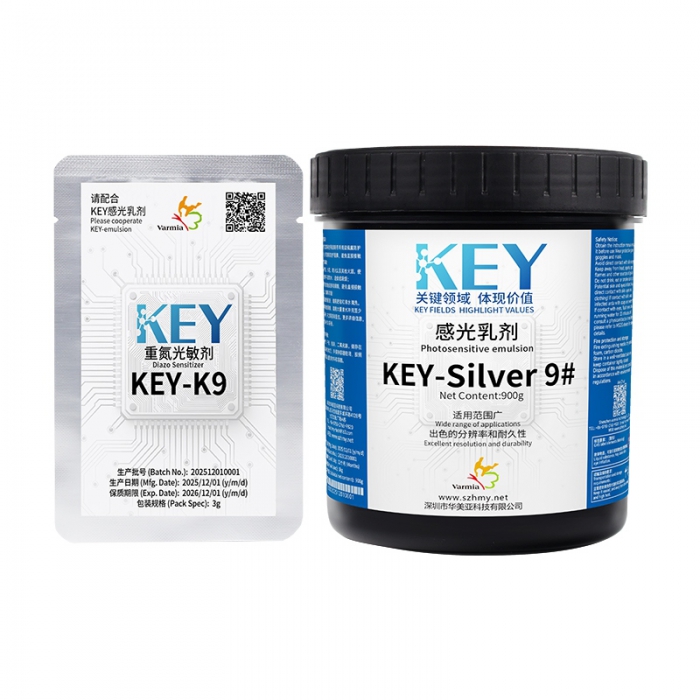

KEY-Silver 9# Photo Emulsion

Performance Characteristics

Product Application Scope

Suitable for high-precision electronic products such as PCBs, FPCs, mobile phone covers, solar cell back electrodes/back aluminum, as well as fine line and halftone screen printing.

Product Characteristics

Reference Exposure Time

It is recommended to perform a secondary exposure after development, which can effectively improve print durability and enhance peelability.

Instructions for Use

Sensitization: Dissolve diazonium in approximately 70-100 grams of purified water. Pour the diazonium solution into the photosensitive emulsion and stir thoroughly with a glass rod or wooden stick. Allow bubbles to dissipate completely before use.

Coating: Apply using a high-quality squeegee. Coating characteristics depend on screen size and tension. Determine the number of coating passes required to achieve the desired film thickness based on printing needs. For two or more coating passes, ensure the previous screen is completely dry before proceeding. Failure to do so may cause film peeling.

Drying: Optimal drying temperature is below 40°C. Excessive heat triggers thermal reactions in the photosensitive emulsion, compromising plate-making quality. Ensure screens are thoroughly dried.

Exposure: Optimal wavelength is 300-400nm. Results are enhanced using ultra-high-pressure mercury lamps or high-pressure gallium-iodine lamps.

Development: Uniformly flush the plate surface using a high-pressure water gun or spray gun.

Drying: After development, first remove surface moisture from the screen before placing it in a drying oven below 40°C. Ensure thorough drying; otherwise, the screen may experience emulsion loss.

Secondary Exposure: Expose the S-side for 1-2 times the duration of the P-side exposure to significantly enhance print durability.

Curing: After complete drying, evenly apply the mixed A+B curing solution to both P-side and S-side. After 1-2 minutes, use an air gun to blow through the ink-flow area. Dry for 20-30 minutes to substantially improve print endurance.

Packaging Specifications

1 kg /can (12 cans /box)

Storage and Transportation

Transport using clean trucks. Stack individual packages no higher than five layers, with the bottom layer secured using anti-slip pallets to prevent crushing, deformation, or tipping.

Ensure proper sealing, avoid direct sunlight, and keep away from high heat.

Unopened and unsensitized, the shelf life is 12 months.
