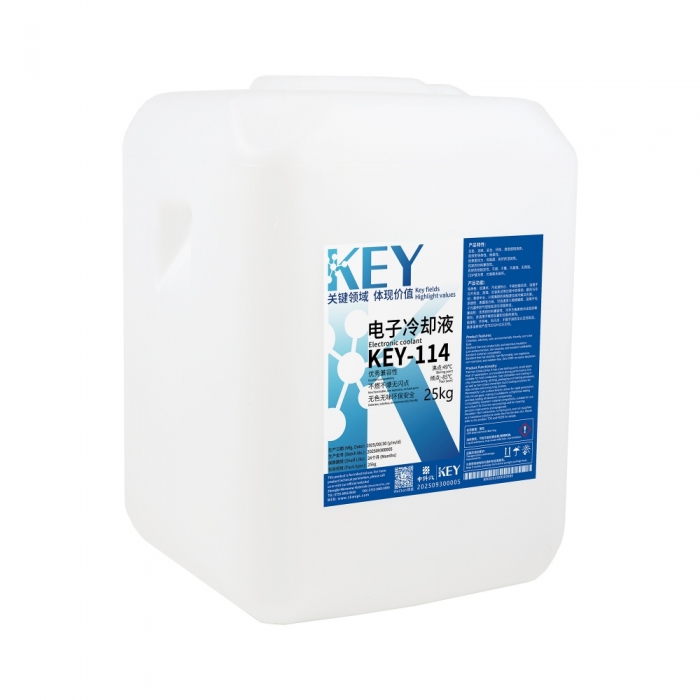

KEY-114 Electronic Fluorinated Liquid (Can Replace 3M Fluorinert™ FC-3284)

Product Highlights

Product Features

• Extremely low surface tension and viscosity enable excellent dispersion, spreading, and penetration into various crevices, providing superior flushing, wetting, and cleaning.

• Excellent electrical insulation allows cleaning under live conditions, expanding operational space.

• Moderate boiling point (49°C) facilitates use in various evaporative cycle cleaning equipment while also cooling components during the evaporation process.

• Non-hazardous, non-flammable, non-explosive, with no flash point or ignition point.

• Excellent flowability and volatility with no residue; provides effective dehydration treatment.

• Non-toxic, harmless, and non-irritating.

• Environmentally friendly with an ODP value of 0 and extremely low GWP value.

• Post-cleaning liquid can be regenerated through distillation, reducing waste and saving costs.

Industry Applications

• Thermal conduction and cooling media for heat dissipation in computer servers, electronic components, power batteries, energy storage systems, and more.

• Semiconductor manufacturing, chip fabrication, packaging and testing, laser etching.

• Cleaning and maintenance of electronic, electrical, and power equipment without power interruption or operational downtime.

• Providing insulation protection within high-voltage equipment.

• Cooling and lubrication during milling and grinding processes.

• Precision cleaning, dehydration, leak detection, and testing of electronic components.

• Solvent diluents, lubricant diluents, and other specialty solvents.

• Thermal shock testing fluid.

Physicochemical parameters

KEY-114

Remark:

Product properties at 25°C, excluding boiling point and freezing point.

Packaging specifications

5 kg、10 kg、15 kg、 20 kg、25 kg、50 kg、100 kg

Transportation and storage

Transport as non-hazardous and non-corrosive chemicals, and store at room temperature.

Keep sealed, avoid direct sunlight and high heat.

The product is sealed and has a 24-month warranty period.
