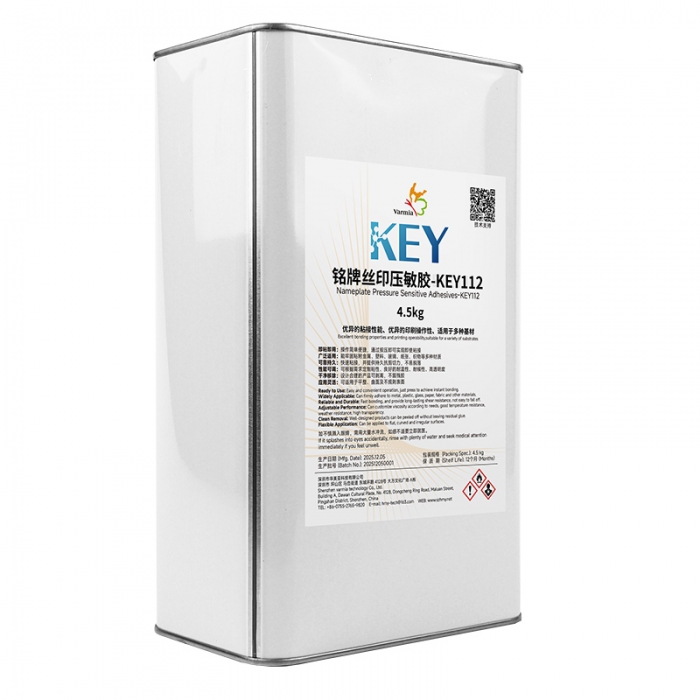

KEY-112 Nameplate Silk-Screen Pressure-Sensitive Adhesive

KEY-112 Nameplate Silk-Screen Pressure-Sensitive Adhesive

Performance Features

Non-toxic and Odorless, Eco-Friendly AdhesiveSuitable for a Variety of MaterialsExcellent Printability,



Excellent SmoothnessFast Drying Speed, Boosting Operational EfficiencySingle-Component, Easy to Use


Product Application

  • Electronic and electrical products, home appliances, and automotive panels, nameplates—especially those with windows and irregular surface shapes.

  • Remote controls, calculators, and game console panels.

  • LCD display panels.

  • Microwave oven control panels.

  • Instrument panels with windows for various devices.

  • Audio equipment panels.

  • Computer-controlled washing machine panels.

  • Automotive instrument panels.

  • Control boards and indicator panels for fax machines and copiers.

  • Membrane switches.

  • Bonding plastic and metal panels such as stainless steel and aluminum.

  • Coating foam and rubber materials for noise reduction and shock absorption.



Physical Properties

typeAppearanceSolid ContentViscosity (mPa·s)Density (g/cm³)pH
Acrylic Ester EmulsionWhite or Pale Yellow Paste-Like Liquid50%350001.037～8


Performance Metrics

180° Peel Strength

Peel Strength at Room Temperature on Various Substrates (Kg/25mm)

ABSAluminumRigid PVCPolycarbonate
1.41.81.61.4


After Aging, 180° Peel Strength (Kg/25mm)

Test ItemsExperimental ConditionsPeel Strength
Initial ValuePlace at 50°C for 24 hours1.4
Thermal Aging80°C, 1000 hours1.1
Moisture Resistant60°C, 95% relative humidity, 1000 hours1.2
Water ResistanceSoak at 40°C for 1000 hours1.3


Note: Base material: ABS plastic. Apply adhesive using #80 polyester mesh.


Drying time

Natural Drying: 3 to 4 hours

80°C: 10 minutes

Note: The color change of the adhesive (from white to transparent) can also serve as an indicator of whether the adhesive has dried. Operating temperature after film formation: -20°C to 80°C.


Important Notes

Material: Stainless steel or polyester mesh.

Mesh count: #45 to #100.

Mesh tension: 14 to 18 N.

Coating adhesive (water-resistant acrylic or diazonium-based coating adhesive, thickness: 30 µm to 70 µm).


Mesh CountPolyester MeshStainless Steel Mesh
Dry Adhesive Thickness（µm）Coverage AreaDry Adhesive Thickness（µm）Coverage Area
#4550～55≈12 m2/kg55～60≈11 m2/kg
#8035～45≈16 m2/kg40～50≈14 m2/kg
#10025～35≈22 m2/kg30～40≈18 m2/kg

Rinse the screen, squeegee, and equipment with water to remove residual adhesive.

Dry adhesive must be removed using solvents such as methyl ethyl ketone (MEK), white mineral oil, ethyl acetate, or isopropyl alcohol.

Gently wipe both sides of the mesh openings with a soft cloth dampened with solvent to remove residual adhesive trapped within the mesh.


Packaging Specifications

4.5 kg/barrel (4 barrels/box)


Storage and Transportation

Store in an environment with temperatures between 5°C and 25°C to prevent the adhesive from freezing. Once frozen, it cannot be used.

Transport using clean trucks. Stack individual packages no higher than five layers, securing lower layers with anti-slip pallets to prevent crushing, deformation, or tipping.

Ensure proper sealing, avoid direct sunlight, and keep away from high heat sources.

Unopened product has a 12-month shelf life. Storage duration shortens when ambient temperatures exceed 40°C (104°F).
